10. 部署Dashboard 插件

官方文件目录：kubernetes/cluster/addons/dashboard

使用的文件如下：

1 2	$ ls *.yaml dashboard-controller.yaml dashboard-rbac.yaml dashboard-service.yaml

新加了 dashboard-rbac.yaml 文件，定义 dashboard 使用的 RoleBinding。

由于 kube-apiserver 启用了 RBAC 授权，而官方源码目录的 dashboard-controller.yaml 没有定义授权的 ServiceAccount，所以后续访问 kube-apiserver 的 API 时会被拒绝，前端界面提示：

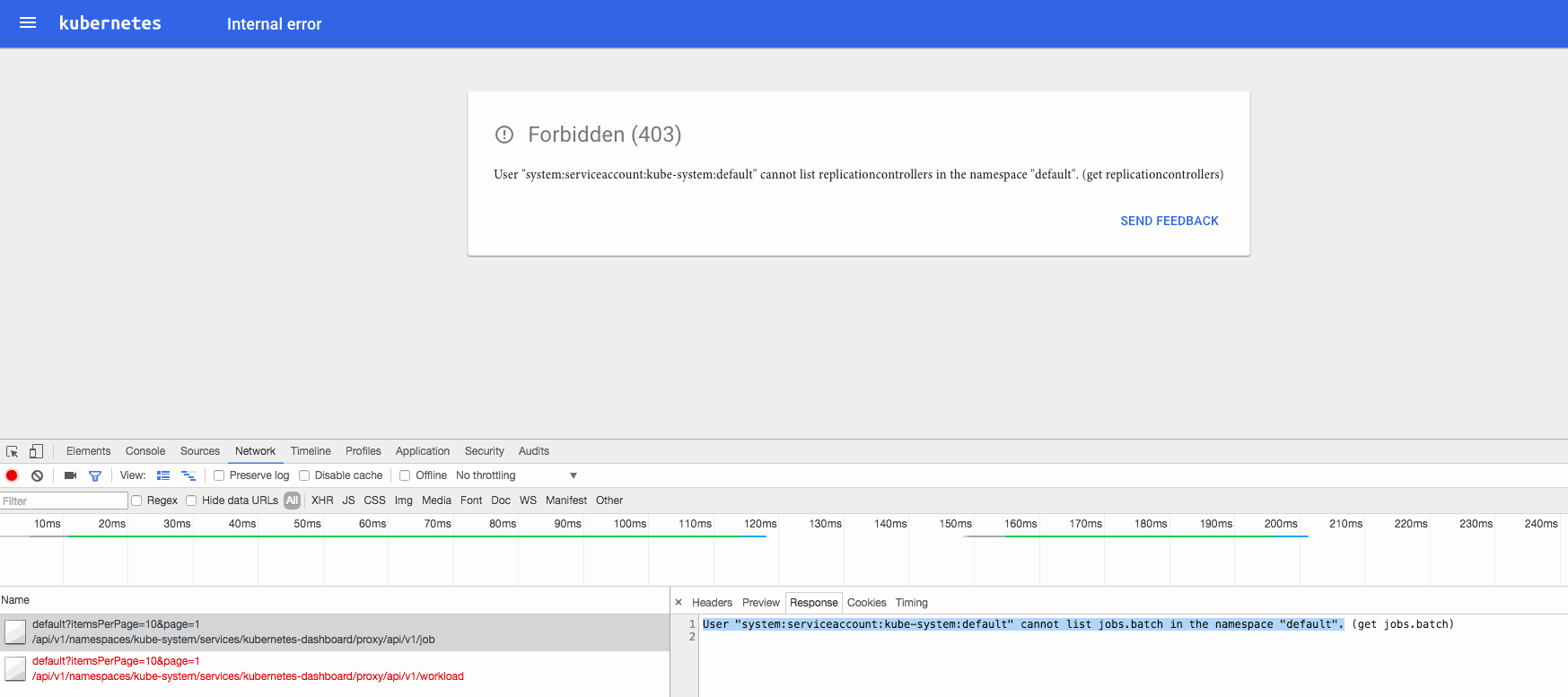

![image](/img/posts/dashboard-403.png)403

解决办法是：定义一个名为dashboard 的ServiceAccount，然后将它和Cluster Role view 绑定：

$ cat > dashboard-rbac.yaml<<EOF
apiVersion: v1
kind: ServiceAccount
metadata:
  name: dashboard
  namespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1alpha1
metadata:
  name: dashboard
subjects:
  - kind: ServiceAccount
    name: dashboard
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io
EOF

配置dashboard-controller

1 2	20a21 > serviceAccountName: dashboard

使用名为 dashboard 的自定义 ServiceAccount

配置dashboard-service

1
2
3

$ diff dashboard-service.yaml.orig dashboard-service.yaml
10a11
>   type: NodePort

指定端口类型为 NodePort，这样外界可以通过地址 nodeIP:nodePort 访问 dashboard

执行所有定义文件

$ pwd
/home/ych/k8s-repo/dashboard
$ ls *.yaml
dashboard-controller.yaml  dashboard-rbac.yaml  dashboard-service.yaml
$ kubectl create -f  .

检查执行结果

查看分配的 NodePort

1
2
3

$ kubectl get services kubernetes-dashboard -n kube-system
NAME                   TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
kubernetes-dashboard   NodePort   10.254.104.90   <none>        80:31202/TCP   1m

NodePort 31202映射到dashboard pod 80端口；

检查 controller

$ kubectl get deployment kubernetes-dashboard  -n kube-system
NAME                   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
kubernetes-dashboard   1         1         1            1           3m

$ kubectl get pods  -n kube-system | grep dashboard
kubernetes-dashboard-6667f9b4c-4xbpz   1/1       Running   0          3m

访问dashboard

kubernetes-dashboard 服务暴露了 NodePort，可以使用 http://NodeIP:nodePort 地址访问 dashboard
通过 kube-apiserver 访问 dashboard
通过 kubectl proxy 访问 dashboard

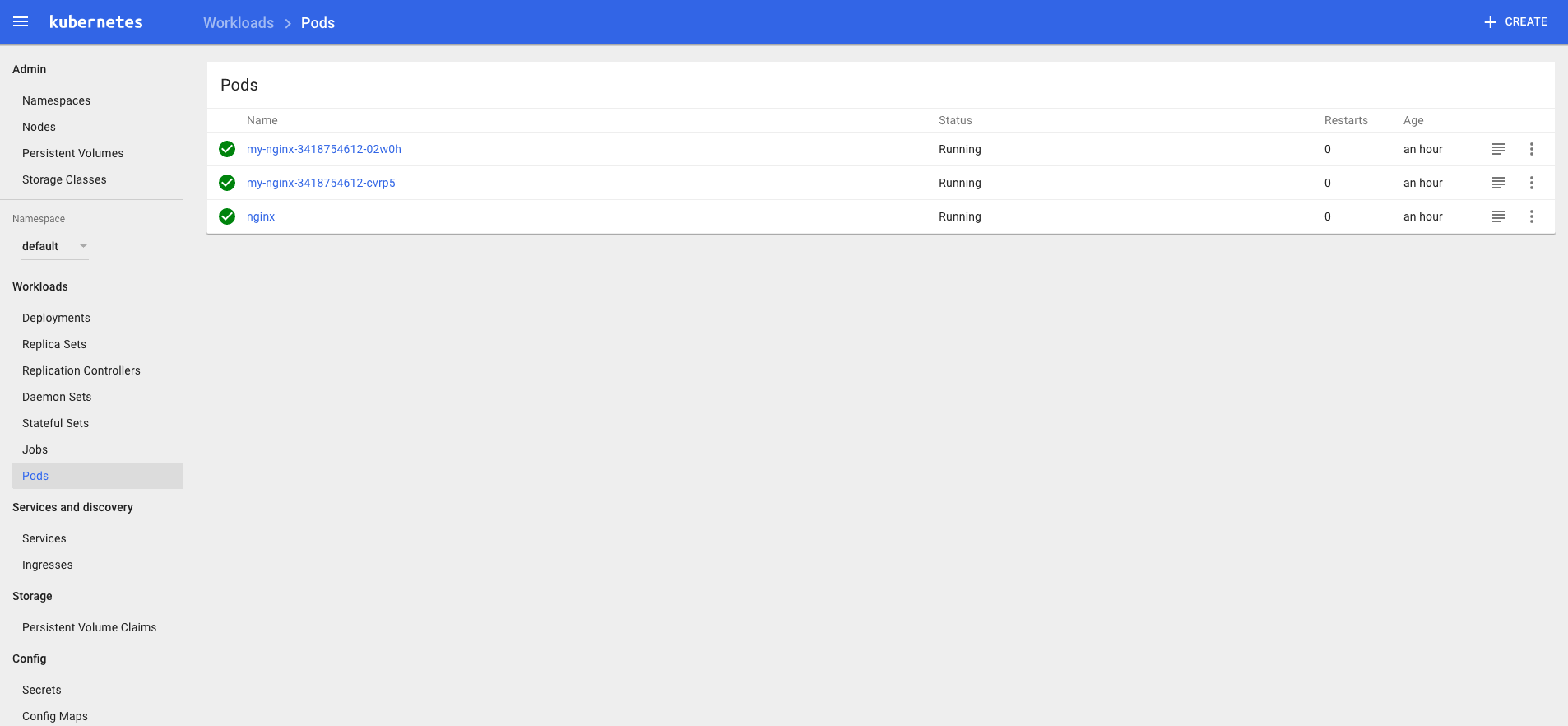

![image](/img/posts/dashboard.png)dashboard ui

由于缺少 Heapster 插件，当前 dashboard 不能展示 Pod、Nodes 的 CPU、内存等 metric 图形

注意：如果你的后端apiserver是高可用的集群模式的话，那么Dashboard的apiserver-host最好手动指定，不然，当你apiserver某个节点挂了的时候，Dashboard可能不能正常访问，如下配置

image: gcr.io/google_containers/kubernetes-dashboard-amd64:v1.7.1
ports:
- containerPort: 9090
  protocol: TCP
args:
  - --apiserver-host=http://<api_server_ha_addr>:8080

11. 部署Heapster 插件

到heapster release 页面下载最新版的heapster

1 2	$ wget https://github.com/kubernetes/heapster/archive/v1.4.3.tar.gz $ tar -xzvf v1.4.3.tar.gz

部署相关文件目录：/home/ych/k8s-repo/heapster-1.4.3/deploy/kube-config

1
2
3

$ ls influxdb/ && ls rbac/
grafana.yaml  heapster.yaml  influxdb.yaml
heapster-rbac.yaml

为方便测试访问，将grafana.yaml下面的服务类型设置为type=NodePort

执行所有文件

$ kubectl create -f rbac/heapster-rbac.yaml
clusterrolebinding "heapster" created
$ kubectl create -f influxdb
deployment "monitoring-grafana" created
service "monitoring-grafana" created
serviceaccount "heapster" created
deployment "heapster" created
service "heapster" created
deployment "monitoring-influxdb" created
service "monitoring-influxdb" created

检查执行结果

检查 Deployment

$ kubectl get deployments -n kube-system | grep -E 'heapster|monitoring'
heapster               1         1         1            1           2m
monitoring-grafana     1         1         1            0           2m
monitoring-influxdb    1         1         1            1           2m

检查 Pods

$ kubectl get pods -n kube-system | grep -E 'heapster|monitoring'
heapster-7cf895f48f-p98tk              1/1       Running            0          2m
monitoring-grafana-c9d5cd98d-gb9xn     0/1       CrashLoopBackOff   4          2m
monitoring-influxdb-67f8d587dd-zqj6p   1/1       Running            0          2m

我们可以看到monitoring-grafana的POD 是没有执行成功的，通过查看日志可以看到下面的错误信息：

Failed to parse /etc/grafana/grafana.ini, open /etc/grafana/grafana.ini: no such file or directory

要解决这个问题(heapster issues)我们需要将grafana 的镜像版本更改成：gcr.io/google_containers/heapster-grafana-amd64:v4.0.2，然后重新执行，即可正常。

访问 grafana

上面我们修改grafana 的Service 为NodePort 类型：

1
2
3

$ kubectl get svc -n kube-system
NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
monitoring-grafana     NodePort    10.254.34.89    <none>        80:30191/TCP    28m

则我们就可以通过任意一个节点加上上面的30191端口就可以访问grafana 了。

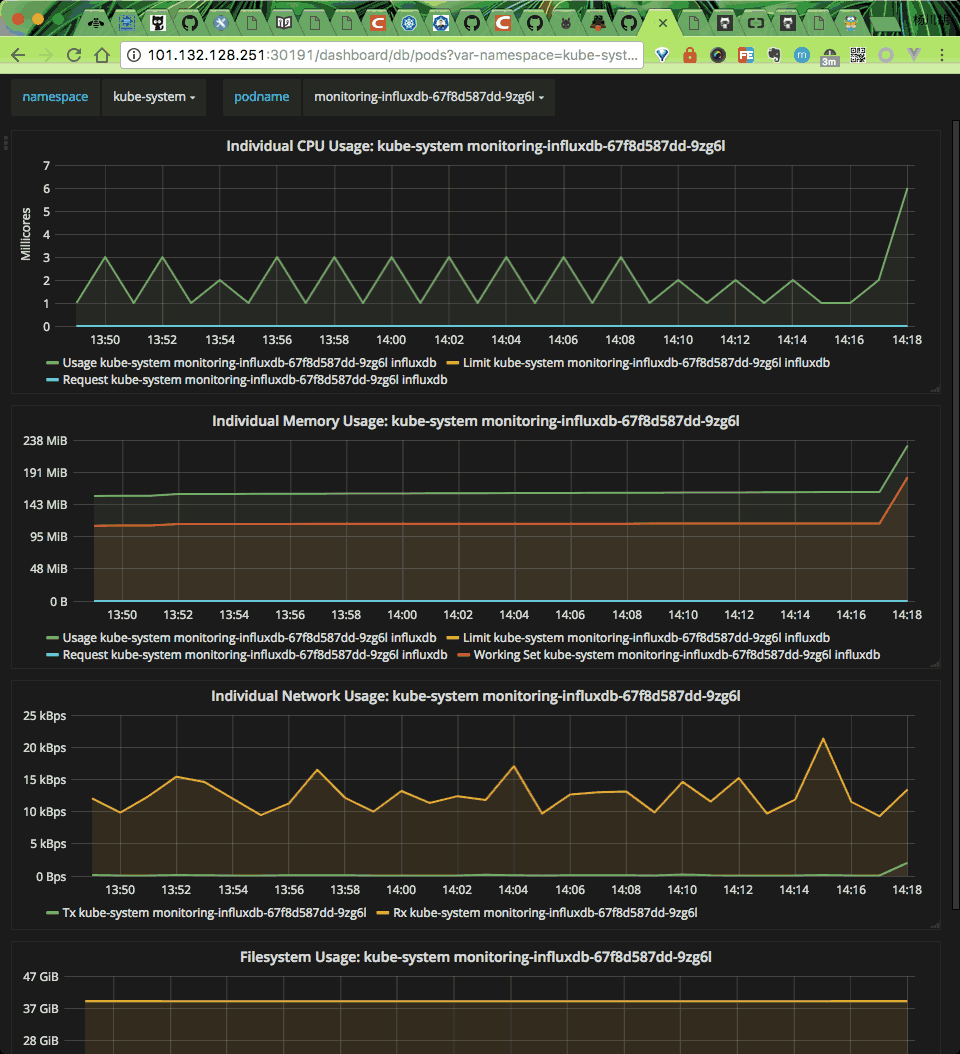

![image](/img/posts/WX20171110-141935.png)grafana ui

heapster 正确安装后，我们便可以回去看我们的dashboard 是否有图表出现了：

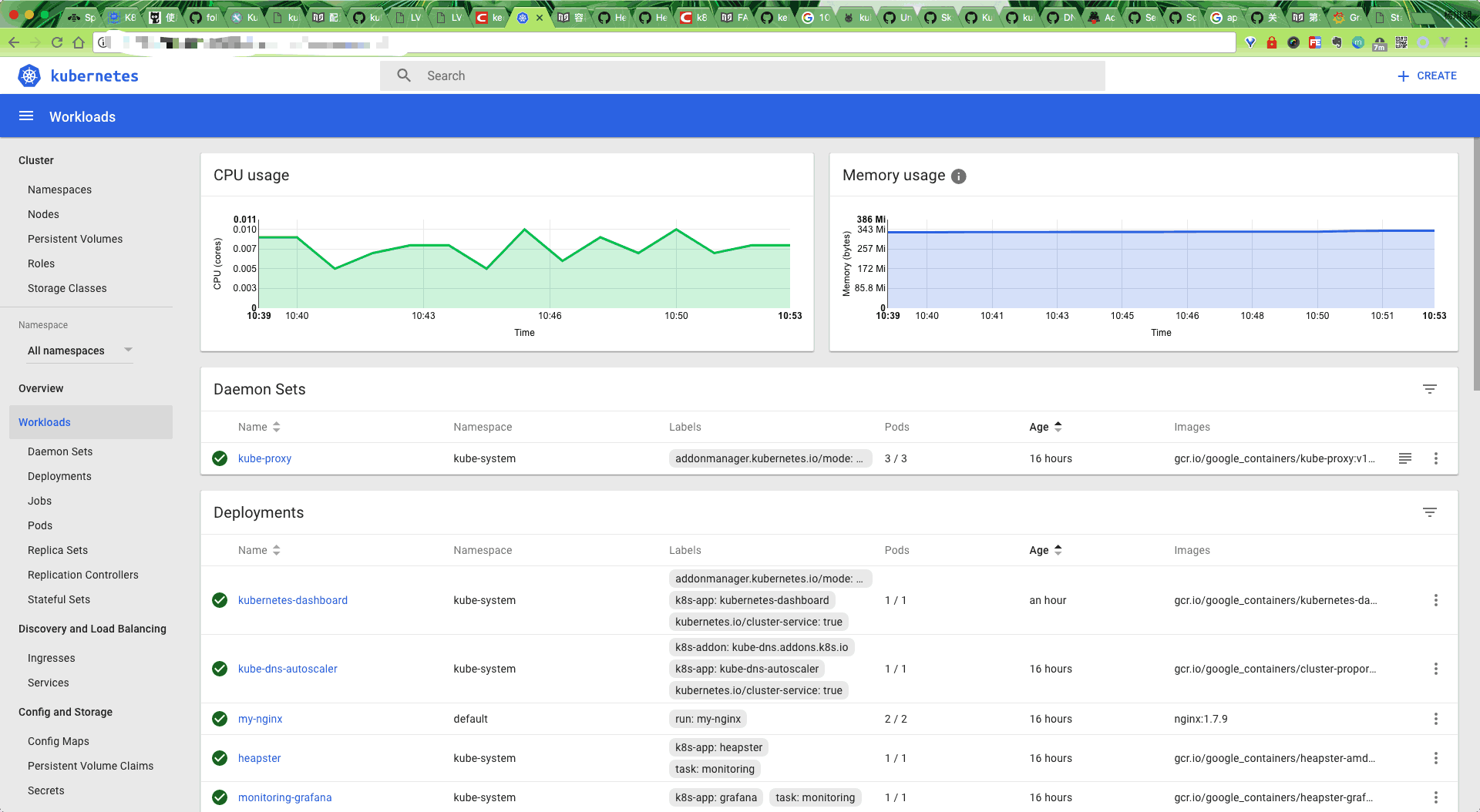

![image](/img/posts/WX20171110-105351.png)dashboard

12. 安装Ingress

Ingress其实就是从kuberenets集群外部访问集群的一个入口，将外部的请求转发到集群内不同的Service 上，其实就相当于nginx、apache 等负载均衡代理服务器，再加上一个规则定义，路由信息的刷新需要靠Ingress controller来提供

Ingress controller可以理解为一个监听器，通过不断地与kube-apiserver打交道，实时的感知后端service、pod 等的变化，当得到这些变化信息后，Ingress controller再结合Ingress的配置，更新反向代理负载均衡器，达到服务发现的作用。其实这点和服务发现工具consul的consul-template非常类似。

部署traefik

Traefik是一款开源的反向代理与负载均衡工具。它最大的优点是能够与常见的微服务系统直接整合，可以实现自动化动态配置。目前支持Docker、Swarm、Mesos/Marathon、 Mesos、Kubernetes、Consul、Etcd、Zookeeper、BoltDB、Rest API等等后端模型。

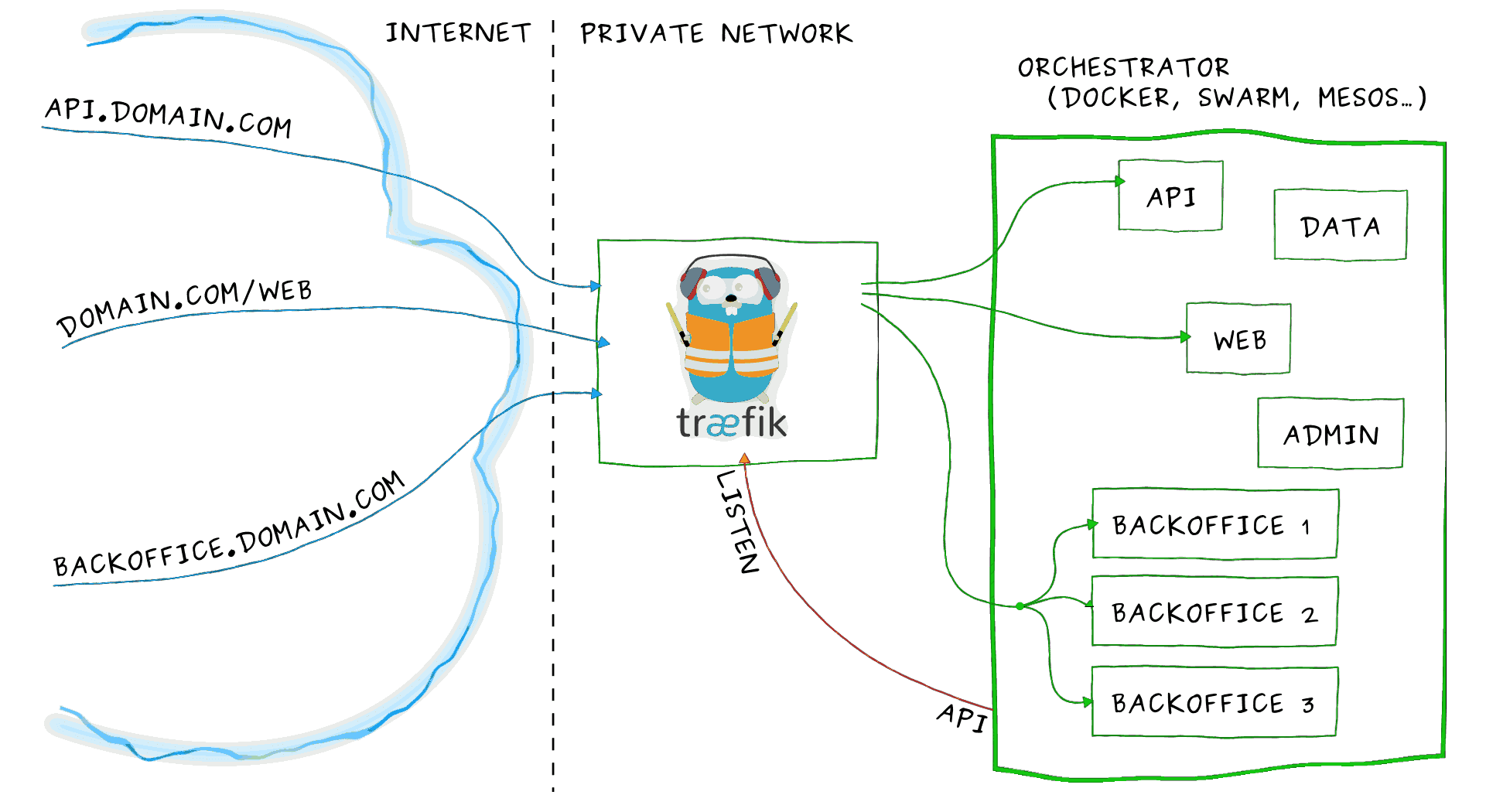

![image](/img/posts/traefik-architecture.png)traefik

创建rbac
创建文件：ingress-rbac.yaml，用于service account验证

apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress
  namespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: ingress
subjects:
  - kind: ServiceAccount
    name: ingress
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io

DaemonSet 形式部署traefik
创建文件：traefik-daemonset.yaml，为保证traefik 总能提供服务，在每个节点上都部署一个traefik，所以这里使用DaemonSet 的形式

kind: ConfigMap
apiVersion: v1
metadata:
  name: traefik-conf
  namespace: kube-system
data:
  traefik-config: |-
    defaultEntryPoints = ["http","https"]
    [entryPoints]
      [entryPoints.http]
      address = ":80"
        [entryPoints.http.redirect]
          entryPoint = "https"
      [entryPoints.https]
      address = ":443"
        [entryPoints.https.tls]
          [[entryPoints.https.tls.certificates]]
          CertFile = "/ssl/ssl.crt"
          KeyFile = "/ssl/ssl.key"

---
	kind: DaemonSet
	apiVersion: extensions/v1beta1
	metadata:
	  name: traefik-ingress
	  namespace: kube-system
	  labels:
	    k8s-app: traefik-ingress
	spec:
	  template:
	    metadata:
	      labels:
	        k8s-app: traefik-ingress
	        name: traefik-ingress
	    spec:
	      terminationGracePeriodSeconds: 60
	      restartPolicy: Always
	      serviceAccountName: ingress
	      containers:
	      - image: traefik:latest
	        name: traefik-ingress
	        ports:
	        - name: http
	          containerPort: 80
	          hostPort: 80
	        - name: https
	          containerPort: 443
	          hostPort: 443
	        - name: admin
	          containerPort: 8080
	        args:
	        - --configFile=/etc/traefik/traefik.toml
	        - -d
	        - --web
	        - --kubernetes
	        - --logLevel=DEBUG
	        volumeMounts:
	        - name: traefik-config-volume
	          mountPath: /etc/traefik
	        - name: traefik-ssl-volume
	          mountPath: /ssl
	      volumes:
	      - name: traefik-config-volume
	        configMap:
	          name: traefik-conf
	          items:
	          - key: traefik-config
	            path: traefik.toml
	      - name: traefik-ssl-volume
	        secret:
	          secretName: traefik-ssl

注意上面的yaml 文件中我们添加了一个名为traefik-conf的ConfigMap，该配置是用来将http 请求强制跳转成https，并指定https 所需CA 文件地址，这里我们使用secret的形式来指定CA 文件的路径：

$ ls
ssl.crt     ssl.key
$ kubectl create secret generic traefik-ssl --from-file=ssl.crt --from-file=ssl.key --namespace=kube-system
secret "traefik-ssl" created

创建ingress
创建文件：traefik-ingress.yaml，现在可以通过创建ingress文件来定义请求规则了，根据自己集群中的service 自己修改相应的serviceName 和servicePort

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: traefik-ingress
spec:
  rules:
  - host: traefik.nginx.io
    http:
      paths:
      - path: /
        backend:
          serviceName: my-nginx
          servicePort: 80

执行创建命令：

$ kubectl create -f ingress-rbac.yaml
serviceaccount "ingress" created
clusterrolebinding "ingress" created
$ kubectl create -f traefik-daemonset.yaml
configmap "traefik-conf" created
daemonset "traefik-ingress" created
$ kubectl create -f traefik-ingress.yaml
ingress "traefik-ingress" created

Traefik UI
创建文件：traefik-ui.yaml，

apiVersion: v1
kind: Service
metadata:
  name: traefik-ui
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress
  ports:
  - name: web
    port: 80
    targetPort: 8080
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: traefik-ui
  namespace: kube-system
spec:
  rules:
  - host: traefik-ui.local
    http:
      paths:
      - path: /
        backend:
          serviceName: traefik-ui
          servicePort: web

测试

部署完成后，在本地/etc/hosts添加一条配置：

1 2	# 将下面的xx.xx.xx.xx替换成任意节点IP xx.xx.xx.xx master03 traefik.nginx.io traefik-ui.local

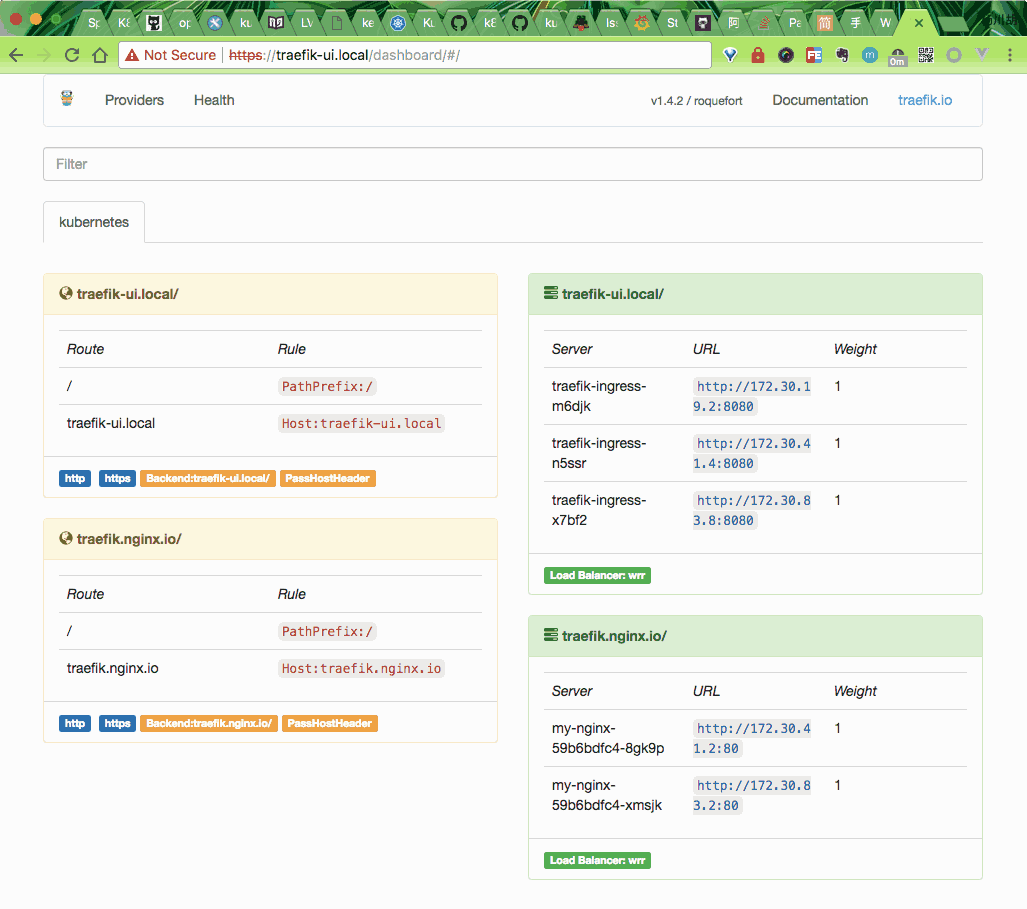

配置完成后，在本地访问：traefik-ui.local，则可以访问到traefik的dashboard页面：

![image](/img/posts/WX20171110-140151.png)traefik dashboard

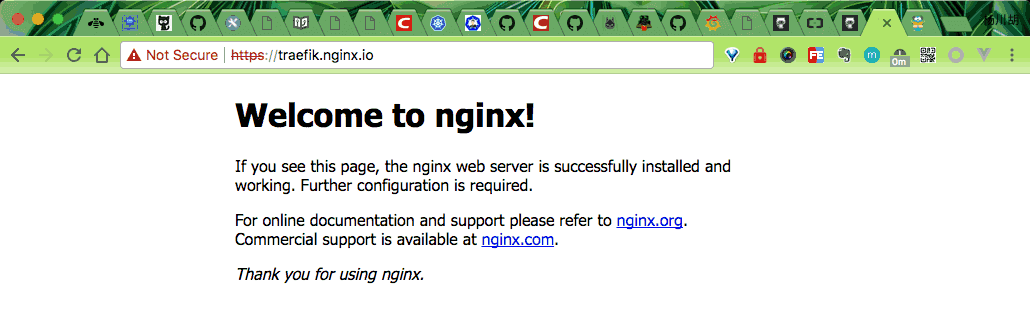

同样的可以访问traefik.nginx.io，得到正确的结果页面：

![image](/img/posts/WX20171110-140306.png)nginx

上面配置完成后，就可以将我们的所有节点加入到一个SLB中，然后配置相应的域名解析到SLB即可。

13. 问题汇总

1. dashboard无法显示监控图
dashboard 和heapster influxdb都部署完成后 dashboard依旧无法显示监控图通过排查 heapster log有超时错误

1
2
3

$ kubectl logs -f pods/heapster-2882613285-58d9r -n kube-system

E0630 17:23:47.339987 1 reflector.go:203] k8s.io/heapster/metrics/sources/kubelet/kubelet.go:342: Failed to list *api.Node: Get http://kubernetes.default/api/v1/nodes?resourceVersion=0: dial tcp: i/o timeout E0630 17:23:47.340274 1 reflector.go:203] k8s.io/heapster/metrics/heapster.go:319: Failed to list *api.Pod: Get http://kubernetes.default/api/v1/pods?resourceVersion=0: dial tcp: i/o timeout E0630 17:23:47.340498 1 reflector.go:203] k8s.io/heapster/metrics/processors/namespace_based_enricher.go:84: Failed to list *api.Namespace: Get http://kubernetes.default/api/v1/namespaces?resourceVersion=0: dial tcp: lookup kubernetes.default on 10.254.0.2:53: dial udp 10.254.0.2:53: i/o timeout E0630 17:23:47.340563 1 reflector.go:203] k8s.io/heapster/metrics/heapster.go:327: Failed to list *api.Node: Get http://kubernetes.default/api/v1/nodes?resourceVersion=0: dial tcp: lookup kubernetes.default on 10.254.0.2:53: dial udp 10.254.0.2:53: i/o timeout E0630 17:23:47.340623 1 reflector.go:203] k8s.io/heapster/metrics/processors/node_autoscaling_enricher.go💯 Failed to list *api.Node: Get http://kubernetes.default/api/v1/nodes?resourceVersion=0: dial tcp: lookup kubernetes.default on 10.254.0.2:53: dial udp 10.254.0.2:53: i/o timeout E0630 17:23:55.014414 1 influxdb.go:150] Failed to create infuxdb: failed to ping InfluxDB server at "monitoring-influxdb:8086" - Get http://monitoring-influxdb:8086/ping: dial tcp: lookup monitoring-influxdb on 10.254.0.2:53: read udp 172.30.45.4:48955->10.254.0.2:53: i/o timeout`

我是docker的systemd Unit文件忘记添加

1	ExecStart=/root/local/bin/dockerd --log-level=error $DOCKER_NETWORK_OPTIONS

后边的$DOCKER_NETWORK_OPTIONS，导致docker0的网段跟flannel.1不一致。

2. kube-proxy报错kube-proxy[2241]: E0502 15:55:13.889842 2241 conntrack.go:42] conntrack returned error: error looking for path of conntrack: exec: “conntrack”: executable file not found in $PATH
导致现象：kubedns启动成功，运行正常，但是service 之间无法解析，kubernetes中的DNS解析异常

解决方法：CentOS中安装conntrack-tools包后重启kubernetes 集群即可。

3. Unable to access kubernetes services: no route to host
导致现象: 在POD 内访问集群的某个服务的时候出现no route to host

1 2	$ curl my-nginx.nx.svc.cluster.local curl: (7) Failed connect to my-nginx.nx.svc.cluster.local:80; No route to host

解决方法：清除所有的防火墙规则，然后重启docker 服务

1 2	$ iptables --flush && iptables -tnat --flush $ systemctl restart docker

4. 使用NodePort 类型的服务，只能在POD 所在节点进行访问
导致现象: 使用NodePort 类型的服务，只能在POD 所在节点进行访问，其他节点通过NodePort 不能正常访问

解决方法: kube-proxy 默认使用的是proxy_model就是iptables，正常情况下是所有节点都可以通过NodePort 进行访问的，我这里将阿里云的安全组限制全部去掉即可，然后根据需要进行添加安全限制。

参考资料

和我一步步部署 kubernetes 集群
 keepalived 配置
 kubernetes issue
kubernetes heapster issue
