异常

1. 由之前月份处理修改的例子

//清单1IncorrectMonthException.java

public class IncorrectMonthException extends Exception {
	private int index;

	public IncorrectMonthException(int index) {
		this.index = index;
	}

	public int getIndex() {
		return index;
	}
}

//清单2Month2.java

class Month2 {
	public static String[] months = { "January", "February", "March", "April", "May", "June", "July", "August",
			"September", "October", "November", "December" };

	public static String get_month(int i) throws IncorrectMonthException {
		if (i < 0 || i > 11)
			throw new IncorrectMonthException(i);
		return months[i];
	};

	public static void main(String[] args) {
		try {
			System.out.println(get_month(100));
		} catch (IncorrectMonthException e) {
			System.out.println("incorrect month index: " + e.getIndex());
			e.printStackTrace();
		}
	};
}

编译

1	javac Month2.java

只写一个Month2.java，这里是IncorrectMonthException.java也会自动编译

反编译

1 2	javap -c -verbose Month2.class javap -c -verbose IncorrectMonthException.class

IncorrectMonthException方法

public IncorrectMonthException(int);
   descriptor: (I)V
   flags: ACC_PUBLIC
   Code:
     stack=2, locals=2, args_size=2
        0: aload_0
        1: invokespecial #1                  // Method java/lang/Exception."<init>":()V
        4: aload_0
        5: iload_1
        6: putfield      #2                  // Field index:I
        9: return

本质上，IncorrectMonthException类只是做了对象构造，还有访问器方法。IncorrectMonthException类是继承于Exception类，所以，IncorrectMonthException类构造之前，构造父类Exception，然后传递整数给IncorrectMonthException类作为唯一的属性值

getIndex方法

public int getIndex();
   descriptor: ()I
   flags: ACC_PUBLIC
   Code:
     stack=1, locals=1, args_size=1
        0: aload_0
        1: getfield      #2                  // Field index:I
        4: ireturn

getIndex()只是一个访问器，引用到IncorrectMonthException类，被传到局部变量的索引值0的位置(this指针)，用aload_0指令取得，用getfield指令取得对象的整数值，用ireturn指令将其返回。

再看Month2.class的get_month方法

public static java.lang.String get_month(int) throws IncorrectMonthException;
  descriptor: (I)Ljava/lang/String;
  flags: ACC_PUBLIC, ACC_STATIC
  Code:
    stack=3, locals=1, args_size=1
       0: iload_0
       1: iflt          10
       4: iload_0
       5: bipush        11
       7: if_icmple     19
      10: new           #2                  // class IncorrectMonthException
      13: dup
      14: iload_0
      15: invokespecial #3                  // Method IncorrectMonthException."<init>":(I)V
      18: athrow
      19: getstatic     #4                  // Field months:[Ljava/lang/String;
      22: iload_0
      23: aaload
      24: areturn

部分指令解释

0: iload_0 //第0个变量（即变量i）压入操作数栈

1: iflt 10 //当栈顶int型数值小于0时跳转到偏移块10（这里是从栈顶弹出一个值进行比较）

4: iload_0 //第0个变量（即变量i）压入操作数栈

5: bipush 11 //将11压入操作数栈

7: if_icmple 19 //会从栈中弹出两个值进行比较，如果第二个(变量i)小于或者等于第一个(数字11)，那么跳转到偏移位19

10: new #2 // class IncorrectMonthException //创建IncorrectMonthException对象的引用并压入栈顶

13: dup //复制栈顶值压入栈顶

14: iload_0 //第0个变量（即变量i）压入操作数栈

15: invokespecial #3 // Method IncorrectMonthException.”“:(I)V //调用IncorrectMonthException的”“方法，这里需要从栈顶弹出两个值，1是IncorrectMonthException对象的引用，2是变量i

18: athrow //将栈顶的异常抛出

19: getstatic #4 // Field months:[Ljava/lang/String; //获取静态成员months数组的引用压入栈

22: iload_0 //第0个变量（即变量i）压入操作数栈

23: aaload //栈顶弹出两个值，将引用型数组指定索引的值推送至栈顶，这里索引i为第一个弹出值，数组引用months为第二个弹出值,即months[i]的值送入栈顶

24: areturn //返回栈顶值

Month2.class的main方法

public static void main(java.lang.String[]);
  descriptor: ([Ljava/lang/String;)V
  flags: ACC_PUBLIC, ACC_STATIC
  Code:
    stack=3, locals=2, args_size=1
       0: getstatic     #5                  // Field java/lang/System.out:Ljava/io/PrintStream;
       3: bipush        100
       5: invokestatic  #6                  // Method get_month:(I)Ljava/lang/String;
       8: invokevirtual #7                  // Method java/io/PrintStream.println:(Ljava/lang/String;)V
      11: goto          47
      14: astore_1
      15: getstatic     #5                  // Field java/lang/System.out:Ljava/io/PrintStream;
      18: new           #8                  // class java/lang/StringBuilder
      21: dup
      22: invokespecial #9                  // Method java/lang/StringBuilder."<init>":()V
      25: ldc           #10                 // String incorrect month index:
      27: invokevirtual #11                 // Method java/lang/StringBuilder.append:(Ljava/lang/String;)Ljava/lang/StringBuilder;
      30: aload_1
      31: invokevirtual #12                 // Method IncorrectMonthException.getIndex:()I
      34: invokevirtual #13                 // Method java/lang/StringBuilder.append:(I)Ljava/lang/StringBuilder;
      37: invokevirtual #14                 // Method java/lang/StringBuilder.toString:()Ljava/lang/String;
      40: invokevirtual #7                  // Method java/io/PrintStream.println:(Ljava/lang/String;)V
      43: aload_1
      44: invokevirtual #15                 // Method IncorrectMonthException.printStackTrace:()V
      47: return
    Exception table:
       from    to  target type
           0    11    14   Class IncorrectMonthException

注意Exception table:文字以及下面的表数据

异常表的第一行数据表示从0到11行若发生异常，则跳转到偏移块14的位置，同时也指明异常的类型为IncorrectMonthException类

异常从偏移块14开始执行，如果没有这个异常表的数据，则偏移块14后的指令不会被执行

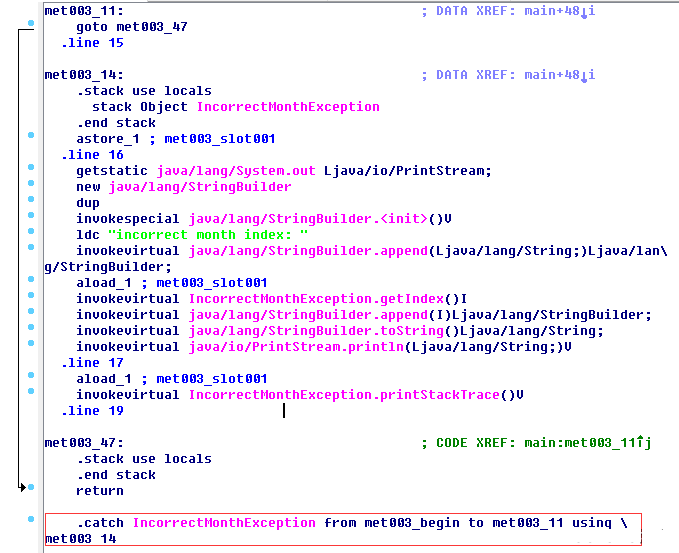

这有个例子，IDA是如何显示异常表：

原作者用的自己电脑里的random.class，这里用刚才的Month2.class替代

1 2	.catch IncorrectMonthException from met003_begin to met003_11 using \ met003_14


参考资料
http://www.vuln.cn/7115
《Reverse Engineering for Beginners》Dennis Yurichev著
