例1

以下是演示JavaFX中的路径转换的程序。将此代码保存在名为PathTransitionExample.java的文件中。

import javafx.animation.PathTransition;
import javafx.application.Application;
import static javafx.application.Application.launch;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;

import javafx.scene.shape.Circle;
import javafx.scene.shape.CubicCurveTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;

import javafx.stage.Stage;
import javafx.util.Duration;

public class PathTransitionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(25.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Instantiating the path class
      Path path = new Path();

      //Creating the MoveTo path element
      MoveTo moveTo = new MoveTo(100, 150);

      //Creating the Cubic curve path element
      CubicCurveTo cubicCurveTo = new CubicCurveTo(400, 40, 175, 250, 500, 150);

      //Adding the path elements to Observable list of the Path class
      path.getElements().add(moveTo);
      path.getElements().add(cubicCurveTo);

      //Creating a path transition
      PathTransition pathTransition = new PathTransition();

      //Setting the duration of the path transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the path
      pathTransition.setPath(path);

      //Setting the orientation of the path
      pathTransition.setOrientation(PathTransition.OrientationType.
      ORTHOGONAL_TO_TAN GENT);

      //Setting the cycle count for the transition
      pathTransition.setCycleCount(50);

      //Setting auto reverse value to false
      pathTransition.setAutoReverse(false);

      //Playing the animation
      pathTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Path transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

javac PathTransitionExample.java
java PathTransitionExample

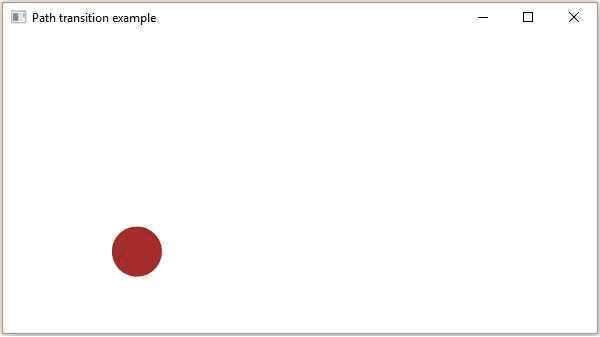

执行时，上面的程序生成一个JavaFX窗口，如下所示。

例2

以下是沿复杂路径转换圆的示例。将此代码保存在名为PathTransitionExample2.java的文件中。

import javafx.animation.PathTransition;
import javafx.application.Application;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;

import javafx.scene.shape.Circle;
import javafx.scene.shape.LineTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;

import javafx.stage.Stage;
import javafx.util.Duration;

public class PathTransitionExample2 extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(25.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Creating a Path
      Path path = new Path();

      //Moving to the starting point
      MoveTo moveTo = new MoveTo(108, 71);

      //Creating 1st line
      LineTo line1 = new LineTo(321, 161);

      //Creating 2nd line
      LineTo line2 = new LineTo(126,232);

      //Creating 3rd line
      LineTo line3 = new LineTo(232,52);

      //Creating 4th line
      LineTo line4 = new LineTo(269, 250);

      //Creating 5th line
      LineTo line5 = new LineTo(108, 71);

      //Adding all the elements to the path
      path.getElements().add(moveTo);
      path.getElements().addAll(line1, line2, line3, line4, line5);

      //Creating the path transition
      PathTransition pathTransition = new PathTransition();

      //Setting the duration of the transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the path for the transition
      pathTransition.setPath(path);

      //Setting the orientation of the path
      pathTransition.setOrientation(
         PathTransition.OrientationType.ORTHOGONAL_TO_TAN GENT);

      //Setting the cycle count for the transition
      pathTransition.setCycleCount(50);

      //Setting auto reverse value to true
      pathTransition.setAutoReverse(false);

      //Playing the animation
      pathTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Path transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

javac PathTransitionExample2.java
java PathTransitionExample2

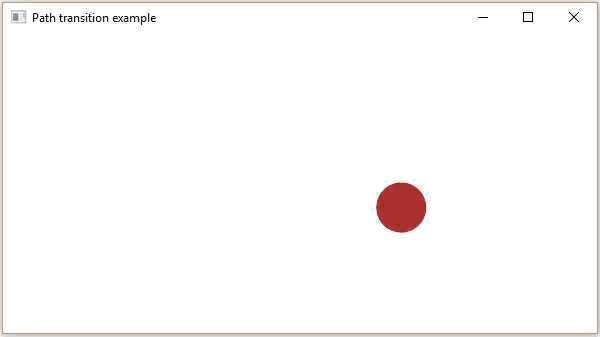

执行时，上面的程序生成一个JavaFX窗口，如下所示。
